HD EFM

Fully digital architecture provides full flexibility in custom setups while maintaining the high level of automation for inexperienced customers. Unique electronic design solutions and high performance electronic components provide an unbeaten level of signal to noise in most critical circuits of AFM as optical beam detection system and piezo drivers.

The AFM modes, which are based on the detection of tip-sample electrostatic forces [1], include Electrostatic force microscopy (EFM), Kelvin probe force microscopy (KPFM) and probing of local dielectric properties in various configurations including Maxwell stress microscopy and others [2], [3]. These modes were introduced for mapping the variations of electrostatic force, measurements of local surface potential and dielectric permittivity.

In these methods a conducting probe exercises the electrostatic force of a sample, which can be rationally modeled by considering a probe tip as an electrode in a tiny capacitor which it forms with the sample that acts as the second electrode, Figure 1 (right).

For the operation of AFM-related electrostatic modes the probe is driven into a mechanical oscillation by a piezo-shaker at its flexural mode, ω_mech, and the electrostatic forces are stimulated by a DC electric bias applied to the probe and/or an AC bias either at ω_mech or at other frequency, ω_elec.

While scanning, the conducting probe simultaneously senses the mechanical and electrostatic force interactions with the sample.

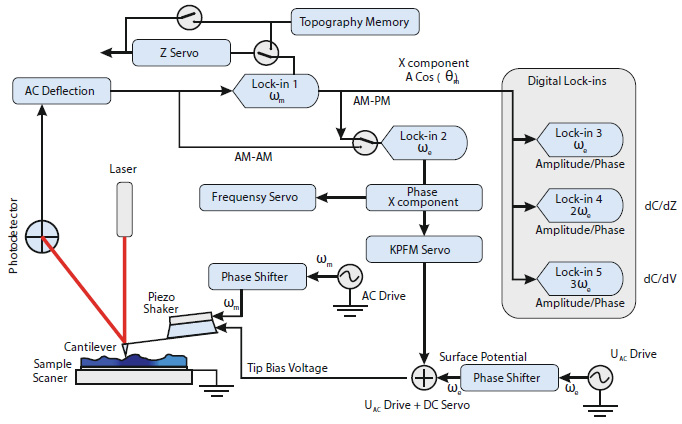

The effects of these interactions can be decoupled either by performing these measurements in separate passes at the same frequency (two-pass technique) or in the single-pass with the simultaneous detection of the mechanical and electrostatic interactions at different frequencies [2]. The latter approach requires a use of several lock-in amplifiers in the detection system, Figure 1 (left).
